群晖docker container 搭建docker registry私服带web ui

1.首先创建登录帐号和密码文件

htpasswd 默认不带 需要安装web套件

例如:

帐号：admin 密码：123456

htpasswd -Bbn admin 123456 > /volume1/dockerapp/registry/auth/passwd
htpasswd -Bbn admin 123456 > /volume1/dockerapp/registry/auth/passwd
htpasswd -Bbn admin 123456 > /volume1/dockerapp/registry/auth/passwd

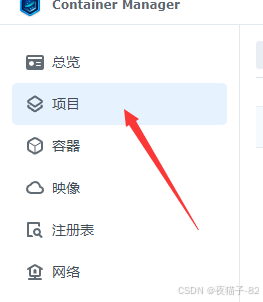

2.创建容器项目

compose.yaml文件

version: '3.8' services: registry-ui: image: joxit/docker-registry-ui:main restart: always ports: - 6006:80 environment: - SINGLE_REGISTRY=true - REGISTRY_TITLE=Docker Registry UI - DELETE_IMAGES=true - SHOW_CONTENT_DIGEST=true - NGINX_PROXY_PASS_URL=http://registry-server:5000 - SHOW_CATALOG_NB_TAGS=true - CATALOG_MIN_BRANCHES=1 - CATALOG_MAX_BRANCHES=1 - TAGLIST_PAGE_SIZE=100 - REGISTRY_SECURED=false - CATALOG_ELEMENTS_LIMIT=1000 container_name: registry-ui registry-server: image: registry:2.8.2 restart: always environment: REGISTRY_HTTP_HEADERS_Access-Control-Allow-Origin: '[http://192.168.2.3:5000]' REGISTRY_HTTP_HEADERS_Access-Control-Allow-Methods: '[HEAD,GET,OPTIONS,DELETE]' REGISTRY_HTTP_HEADERS_Access-Control-Allow-Credentials: '[true]' REGISTRY_HTTP_HEADERS_Access-Control-Allow-Headers: '[Authorization,Accept,Cache-Control]' REGISTRY_HTTP_HEADERS_Access-Control-Expose-Headers: '[Docker-Content-Digest]' REGISTRY_STORAGE_DELETE_ENABLED: 'true' REGISTRY_AUTH: 'htpasswd' REGISTRY_AUTH_HTPASSWD_REALM: 'Registry Realm' REGISTRY_AUTH_HTPASSWD_PATH: '/etc/registry/auth/passwd' DELETE_IMAGES: 'true' volumes: - /volume1/dockerapp/registry/data:/var/lib/registry - /volume1/dockerapp/registry/auth:/etc/registry/auth container_name: registry-server
version: '3.8' services: registry-ui: image: joxit/docker-registry-ui:main restart: always ports: - 6006:80 environment: - SINGLE_REGISTRY=true - REGISTRY_TITLE=Docker Registry UI - DELETE_IMAGES=true - SHOW_CONTENT_DIGEST=true - NGINX_PROXY_PASS_URL=http://registry-server:5000 - SHOW_CATALOG_NB_TAGS=true - CATALOG_MIN_BRANCHES=1 - CATALOG_MAX_BRANCHES=1 - TAGLIST_PAGE_SIZE=100 - REGISTRY_SECURED=false - CATALOG_ELEMENTS_LIMIT=1000 container_name: registry-ui registry-server: image: registry:2.8.2 restart: always environment: REGISTRY_HTTP_HEADERS_Access-Control-Allow-Origin: '[http://192.168.2.3:5000]' REGISTRY_HTTP_HEADERS_Access-Control-Allow-Methods: '[HEAD,GET,OPTIONS,DELETE]' REGISTRY_HTTP_HEADERS_Access-Control-Allow-Credentials: '[true]' REGISTRY_HTTP_HEADERS_Access-Control-Allow-Headers: '[Authorization,Accept,Cache-Control]' REGISTRY_HTTP_HEADERS_Access-Control-Expose-Headers: '[Docker-Content-Digest]' REGISTRY_STORAGE_DELETE_ENABLED: 'true' REGISTRY_AUTH: 'htpasswd' REGISTRY_AUTH_HTPASSWD_REALM: 'Registry Realm' REGISTRY_AUTH_HTPASSWD_PATH: '/etc/registry/auth/passwd' DELETE_IMAGES: 'true' volumes: - /volume1/dockerapp/registry/data:/var/lib/registry - /volume1/dockerapp/registry/auth:/etc/registry/auth container_name: registry-server
version: '3.8' services: registry-ui: image: joxit/docker-registry-ui:main restart: always ports: - 6006:80 environment: - SINGLE_REGISTRY=true - REGISTRY_TITLE=Docker Registry UI - DELETE_IMAGES=true - SHOW_CONTENT_DIGEST=true - NGINX_PROXY_PASS_URL=http://registry-server:5000 - SHOW_CATALOG_NB_TAGS=true - CATALOG_MIN_BRANCHES=1 - CATALOG_MAX_BRANCHES=1 - TAGLIST_PAGE_SIZE=100 - REGISTRY_SECURED=false - CATALOG_ELEMENTS_LIMIT=1000 container_name: registry-ui registry-server: image: registry:2.8.2 restart: always environment: REGISTRY_HTTP_HEADERS_Access-Control-Allow-Origin: '[http://192.168.2.3:5000]' REGISTRY_HTTP_HEADERS_Access-Control-Allow-Methods: '[HEAD,GET,OPTIONS,DELETE]' REGISTRY_HTTP_HEADERS_Access-Control-Allow-Credentials: '[true]' REGISTRY_HTTP_HEADERS_Access-Control-Allow-Headers: '[Authorization,Accept,Cache-Control]' REGISTRY_HTTP_HEADERS_Access-Control-Expose-Headers: '[Docker-Content-Digest]' REGISTRY_STORAGE_DELETE_ENABLED: 'true' REGISTRY_AUTH: 'htpasswd' REGISTRY_AUTH_HTPASSWD_REALM: 'Registry Realm' REGISTRY_AUTH_HTPASSWD_PATH: '/etc/registry/auth/passwd' DELETE_IMAGES: 'true' volumes: - /volume1/dockerapp/registry/data:/var/lib/registry - /volume1/dockerapp/registry/auth:/etc/registry/auth container_name: registry-server

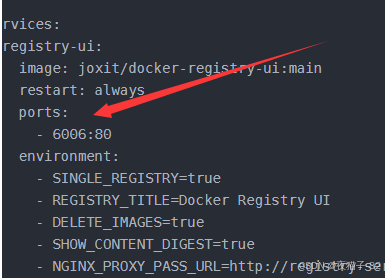

这里5000端口，不会映射到外边，必须是5000，否则webui会报错。

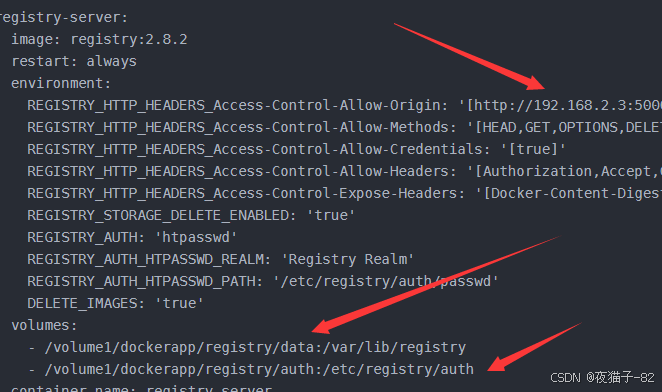

只需要修改以下几处地方为自己的即可

3.docker客户机上传

win平台docker为例

docker中增加

"insecure-registries": ["192.168.2.3:6006"]
"insecure-registries": ["192.168.2.3:6006"]
"insecure-registries": ["192.168.2.3:6006"]

如图

上传操作

#登录私服 docker login 192.168.2.3:6006 输入帐号admin 密码123456 登录成功 #拉取官方镜像 docker pull gitea/gitea:latest #修改标签 docker tag gitea/gitea:latest 192.168.2.3:6006/gitea/gitea:latest #上传镜像到私服 docker push 192.168.2.3:6006/gitea/gitea:latest
#登录私服 docker login 192.168.2.3:6006 输入帐号admin 密码123456 登录成功 #拉取官方镜像 docker pull gitea/gitea:latest #修改标签 docker tag gitea/gitea:latest 192.168.2.3:6006/gitea/gitea:latest #上传镜像到私服 docker push 192.168.2.3:6006/gitea/gitea:latest
#登录私服 docker login 192.168.2.3:6006 输入帐号admin 密码123456 登录成功 #拉取官方镜像 docker pull gitea/gitea:latest #修改标签 docker tag gitea/gitea:latest 192.168.2.3:6006/gitea/gitea:latest #上传镜像到私服 docker push 192.168.2.3:6006/gitea/gitea:latest

查看上传镜像

http://192.168.2.3:6006/

输入帐号 admin 密码 123456
