使用老毛子在腾讯云DNSpod上实现DDNS

需求：
1. 一台刷了老毛子的路由器
​2. 腾讯云上购买的域名

最近申请了电信的动态公网IP，就想着我之前买的域名可以用起来了，于是乎查阅资料在路由器上实现了DDNS

1. 首先在GitHub上搜索DDNS，找到了一个可用的shell脚本rehiy/dnspod-shell为了方便拷贝到路由器，按照作者的方法把配置融合进了单文件内，文件修改好备用

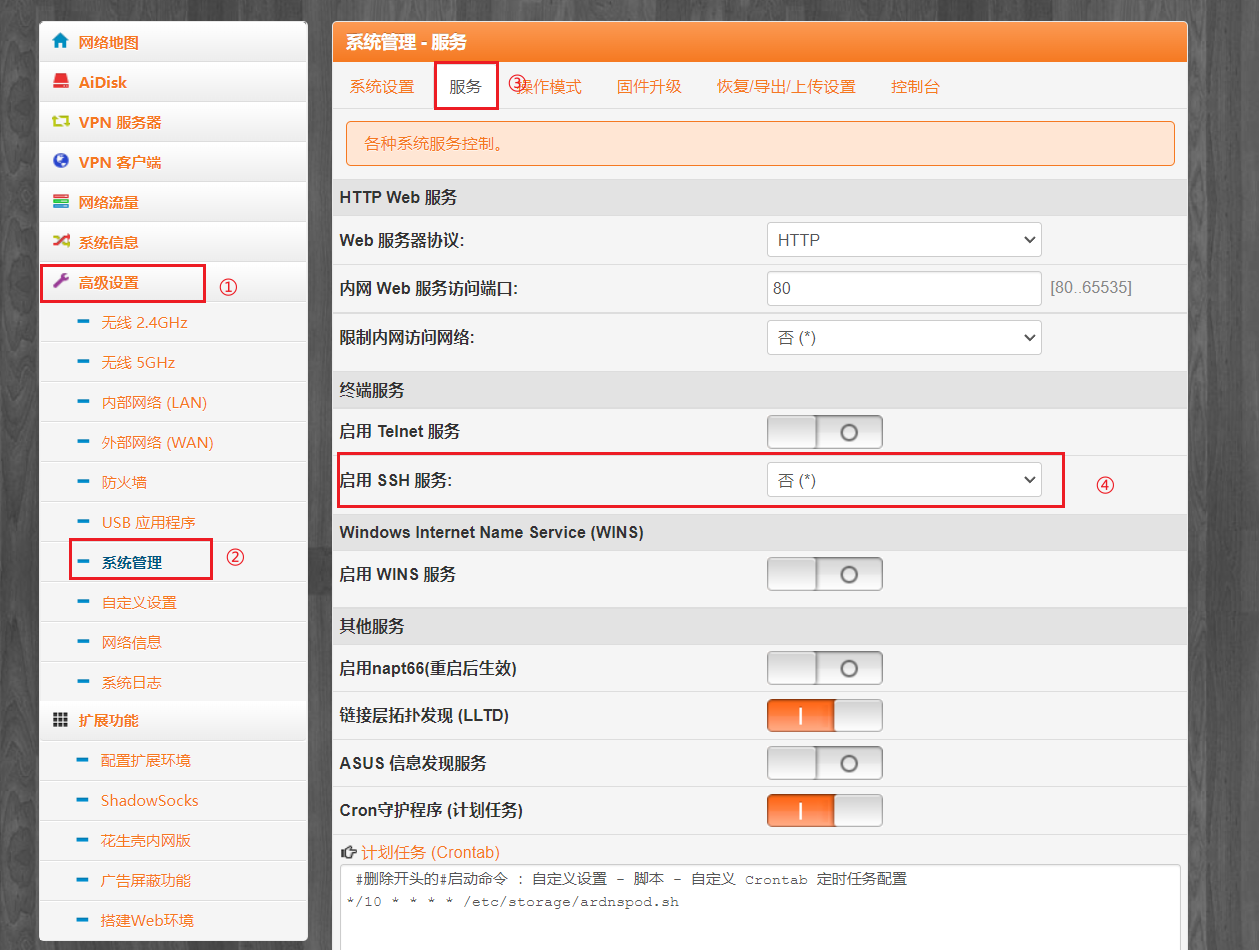

2. 复制进老毛子，浏览器输入192.168.123.1进入老毛子管理界面，依次点击高级设置中的系统管理-服务-启用ssh服务选择“是”


3. 打开FinalShell或者其他ssh软件登录路由器，选择新建ssh连接，地址就是192.168.123.1，用户名密码就是你设置的密码，进入之后把改好的.sh文件复制到路由器/etc/storage/目录下

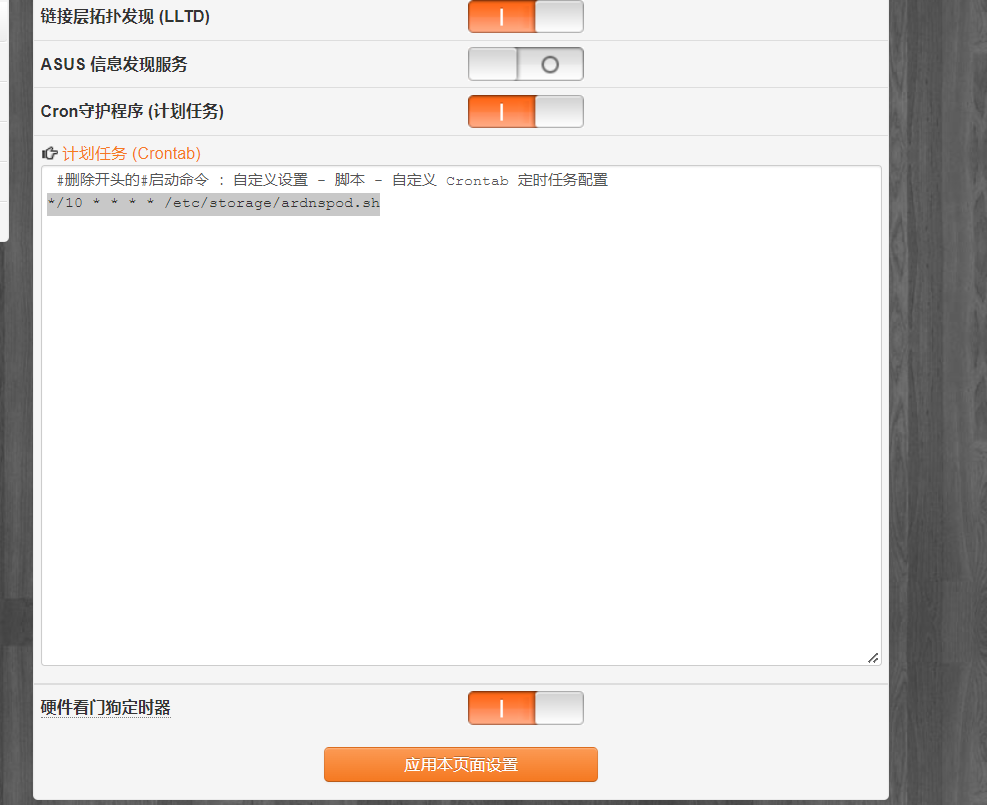

4. 在计划任务那里输入*/10 * * * * /etc/storage/ardnspod.sh代表10分钟运行一次，最后点击“应用本页面设置”即可。

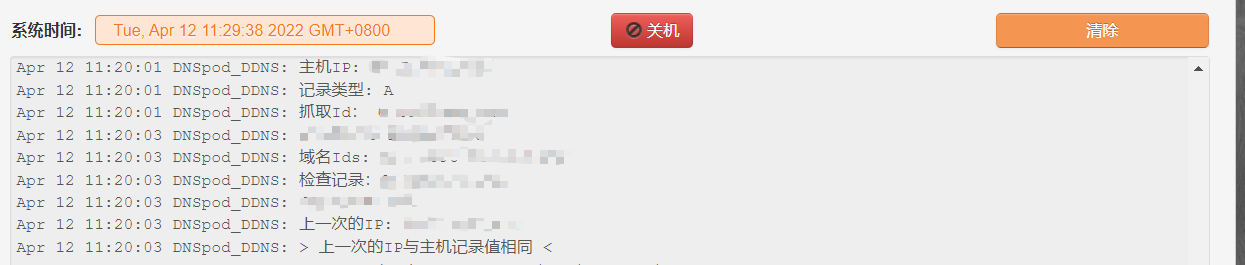

5. 最后为了能够方便管理，我把代码的输出改到了系统日志输出，这样就可以在路由器管理界面看到运行效果啦

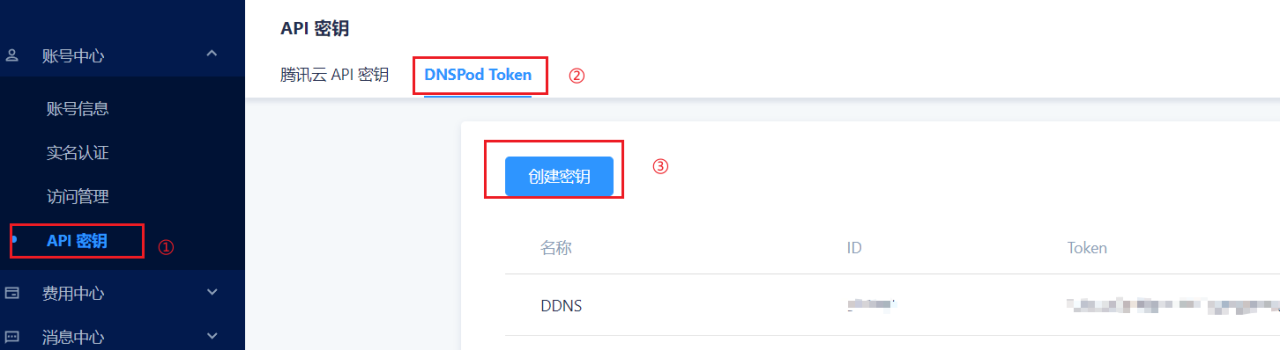

   改过的代码我放在最后，只需要改最后两行的arToken和arDdnsCheck即可，arToken可以登录DNSpod点击右上角我的账号-api密钥

   然后选择创建DNSpod Token即可获取，arToken格式为ID,Token
   如果感觉不错的话请点个小哈。

#!/bin/sh # ############################################################# # AnripDdns v6.1.1 # # Dynamic DNS using DNSPod API # # Author: Rehiy, https://github.com/rehiy # https://www.anrip.com/?s=dnspod # Collaborators: ProfFan, https://github.com/ProfFan # # Usage: please refer to `ddnspod.sh` # ############################################################# # TokenID,Token export arToken="" # Get WAN IPv4 arWanIp4() { local hostIp local lanIps="^$" lanIps="$lanIps|(^10\.[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}$)" lanIps="$lanIps|(^127\.[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}$)" lanIps="$lanIps|(^169\.254\.[0-9]{1,3}\.[0-9]{1,3}$)" lanIps="$lanIps|(^172\.(1[6-9]|2[0-9]|3[0-1])\.[0-9]{1,3}\.[0-9]{1,3}$)" lanIps="$lanIps|(^192\.168\.[0-9]{1,3}\.[0-9]{1,3}$)" case $(uname) in 'Linux') hostIp=$(ip -o -4 addr list | grep -Ev '\s(docker|lo)' | awk '{print $4}' | cut -d/ -f1 | grep -Ev "$lanIps") ;; Darwin|FreeBSD) hostIp=$(ifconfig | grep "inet " | grep -v 127.0.0.1 | awk '{print $2}' | grep -Ev "$lanIps") ;; esac if [ -z "$hostIp" ]; then if type wget >/dev/null 2>&1; then hostIp=$(wget -q -O- https://v4.myip.la) else hostIp=$(curl -s https://v4.myip.la) fi fi if [ -z "$hostIp" ]; then echo "arWanIp4 - Can't get ip address" logger -t DNSpod_DDNS "无法获取ip地址" return 1 fi if [ -z "$(echo $hostIp | grep -E '^[0-9\.]+$')" ]; then echo "arWanIp4 - Invalid ip address $hostIp" logger -t DNSpod_DDNS "无效ip地址：$hostIp" return 1 fi echo $hostIp } # Get WAN IPv6 arWanIp6() { local hostIp local lanIps="(^$)|(^::1$)|(^[fF][eE][8-9a-fA-F])" case $(uname) in 'Linux') hostIp=$(ip -o -6 addr list | grep -Ev '\s(docker|lo)' | awk '{print $4,substr($NF,0,length($NF)-3)}' | sed 's/fore/2592000/g' | sort -k 2 -n | cut -d/ -f1 | grep -Ev "$lanIps" | head -n 1) ;; Darwin|FreeBSD) hostIp=$(ifconfig | grep "inet6 " | awk '{print $2}' | grep -Ev "$lanIps" | head -n 1) ;; esac if [ -z "$hostIp" ]; then if type wget >/dev/null 2>&1; then hostIp=$(wget -q -O- https://v6.myip.la) else hostIp=$(curl -s https://v6.myip.la) fi fi if [ -z "$hostIp" ]; then echo "arWanIp6 - Can't get ip address" return 1 fi if [ -z "$(echo $hostIp | grep -E '^[0-9a-fA-F:]+$')" ]; then echo "arWanIp6 - Invalid ip address" return 1 fi echo $hostIp } # Dnspod Bridge # Args: type data arDdnsApi() { local agent="AnripDdns/6.1.0(wang@rehiy.com)" local apiurl="https://dnsapi.cn/${1:?'Info.Version'}" local params="login_token=$arToken&format=json&$2" if type wget >/dev/null 2>&1; then wget -q -O- --no-check-certificate -U $agent --post-data $params $apiurl else curl -s -A $agent -d $params $apiurl fi } # Fetch Ids of Domain and Record # Args: recordType domain subdomain arDdnsIds() { local errMsg local domainId local recordId # Get Domain Id domainId=$(arDdnsApi "Domain.Info" "domain=$2") domainId=$(echo $domainId | sed 's/.*"id":"\([0-9]*\)".*/\1/') if ! [ "$domainId" -gt 0 ] 2>/dev/null ;then errMsg=$(echo $domainId | sed 's/.*"message":"\([^\"]*\)".*/\1/') echo "arDdnsIds - $errMsg" logger -t DNSpod_DDNS "arDdnsIds - $errMsg" return 1 fi # Get Record Id recordId=$(arDdnsApi "Record.List" "domain_id=$domainId&sub_domain=$3&record_type=$1") recordId=$(echo $recordId | sed 's/.*"id":"\([0-9]*\)".*/\1/') if ! [ "$recordId" -gt 0 ] 2>/dev/null ;then errMsg=$(echo $recordId | sed 's/.*"message":"\([^\"]*\)".*/\1/') echo "arDdnsIds - $errMsg" logger -t DNSpod_DDNS "arDdnsIds - $errMsg" return 1 fi echo $domainId $recordId logger -t DNSpod_DDNS "$domainId $recordId" } # Fetch Record Ip # Args: domainId recordId arDdnsRecordIp() { local errMsg local recordIp # Get Record Ip recordIp=$(arDdnsApi "Record.Info" "domain_id=$1&record_id=$2") recordIp=$(echo $recordIp | sed 's/.*,"value":"\([0-9a-fA-F\.\:]*\)".*/\1/') # Output Record Ip case "$recordIp" in [0-9a-fA-F]*) echo $recordIp logger -t DNSpod_DDNS "$recordIp" return 0 ;; *) errMsg=$(echo $recordIp | sed 's/.*"message":"\([^\"]*\)".*/\1/') echo "arDdnsRecordIp - $errMsg" logger -t DNSpod_DDNS "arDdnsRecordIp - $errMsg" return 1 ;; esac } # Update Record Ip # Args: domainId recordId subdomain hostIp recordType arDdnsUpdate() { local errMsg local recordRs local recordIp local recordCd if [ -z "$5" ]; then echo "arDdnsUpdate - Args number error" logger -t DNSpod_DDNS "arDdnsUpdate - Args number error" return 1 fi # Update Ip recordRs=$(arDdnsApi "Record.Modify" "domain_id=$1&record_id=$2&sub_domain=$3&record_type=$5&value=$4&record_line=%e9%bb%98%e8%ae%a4") recordIp=$(echo $recordRs | sed 's/.*,"value":"\([0-9a-fA-F\.\:]*\)".*/\1/') recordCd=$(echo $recordRs | sed 's/.*{"code":"\([0-9]*\)".*/\1/') # Output Result if [ "$recordIp" = "$4" ] && [ "$recordCd" = "1" ]; then echo "arDdnsUpdate - success" logger -t DNSpod_DDNS "arDdnsUpdate - success" return 0 else errMsg=$(echo $recordRs | sed 's/.*,"message":"\([^"]*\)".*/\1/') echo "arDdnsUpdate - $errMsg" logger -t DNSpod_DDNS "arDdnsUpdate - $errMsg" return 1 fi } # DDNS Check # Args: Main Sub arDdnsCheck() { local errCode local recordType local hostIp local ddnsIds local lastIp local postRs echo "Fetching Host Ip" logger -t DNSpod_DDNS "获取主机IP" if [ "$3" = "6" ]; then recordType=AAAA hostIp=$(arWanIp6) else recordType=A hostIp=$(arWanIp4) fi errCode=$? echo "> Host Ip: $hostIp" logger -t DNSpod_DDNS "主机IP: $hostIp" echo "> Record Type: $recordType" logger -t DNSpod_DDNS "记录类型: $recordType" if [ $errCode -ne 0 ]; then return 1 fi echo "Fetching Ids of $2.$1" logger -t DNSpod_DDNS "抓取Id： $2.$1" ddnsIds=$(arDdnsIds "$recordType" "$1" "$2") errCode=$? echo "> Domain Ids: $ddnsIds" logger -t DNSpod_DDNS "域名Ids: $ddnsIds" if [ $errCode -ne 0 ]; then return 1 fi echo "Checking Record for $2.$1" logger -t DNSpod_DDNS "检查记录：$2.$1" lastIp=$(arDdnsRecordIp $ddnsIds) errCode=$? echo "> Last Ip: $lastIp" logger -t DNSpod_DDNS "上一次的IP: $lastIp" if [ $errCode -ne 0 ]; then return 1 fi if [ "$lastIp" = "$hostIp" ]; then echo "> Last Ip is the same as host Ip" logger -t DNSpod_DDNS "> 上一次的IP与主机记录值相同 <" return 0 fi echo "Updating Record for $2.$1" logger -t DNSpod_DDNS "Updating Record for $2.$1" postRs=$(arDdnsUpdate $ddnsIds "$2" "$hostIp" "$recordType") errCode=$? echo "> $postRs" logger -t DNSpod_DDNS "> $postRs" if [ $errCode -ne 0 ]; then return 1 fi } arToken=12345,7676f344eaeaea9074c123451234512d arDdnsCheck test.org subdomain
