利用阿里云服务器搭建内网穿透服务（基于FRP）

1、下载FRP

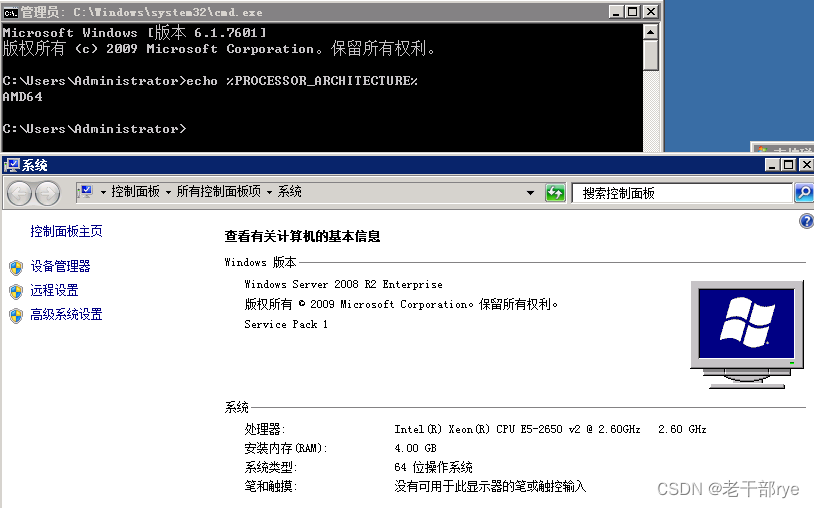

确认CPU型号，这里使用的阿里云服务器AMD64，内网机器Win10系统

<span class="token function">echo</span> <span class="token operator">%</span>PROCESSOR_ARCHITECTURE%
<span class="token function">echo</span> <span class="token operator">%</span>PROCESSOR_ARCHITECTURE%
echo %PROCESSOR_ARCHITECTURE%

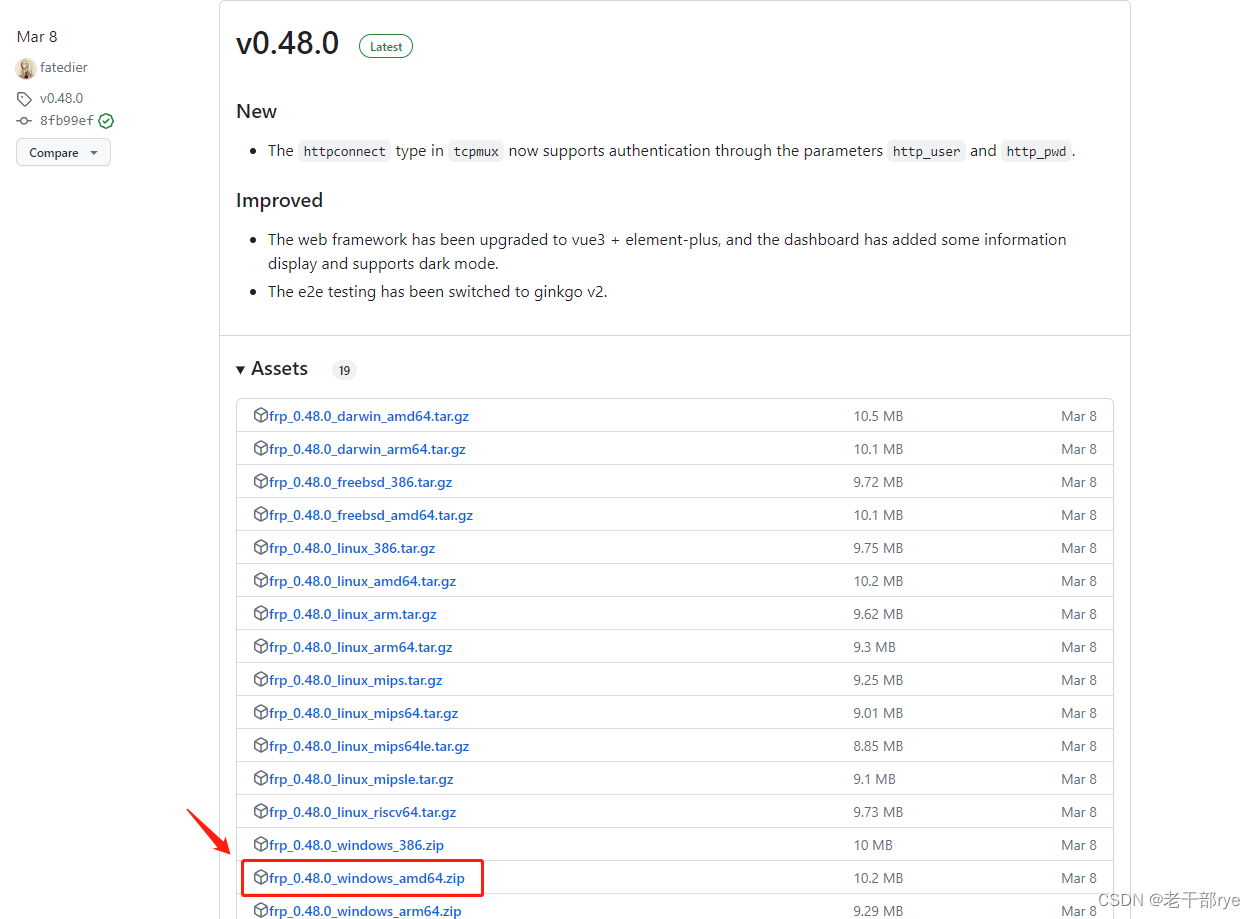

下载对应型号FRP：https://github.com/fatedier/frp/releases

2、服务端配置

修改frps.ini配置文件

<span class="token namespace">[common]</span>  bind_addr = 0<span class="token punctuation">.</span>0<span class="token punctuation">.</span>0<span class="token punctuation">.</span>0  bind_port = 7000  dashboard_port = 7500 dashboard_user = admin dashboard_pwd = admin  token = 010  log_file = <span class="token punctuation">.</span><span class="token operator">/</span>frps<span class="token punctuation">.</span>log log_level = info log_max_days = 2
<span class="token namespace">[common]</span>  bind_addr = 0<span class="token punctuation">.</span>0<span class="token punctuation">.</span>0<span class="token punctuation">.</span>0  bind_port = 7000  dashboard_port = 7500 dashboard_user = admin dashboard_pwd = admin  token = 010  log_file = <span class="token punctuation">.</span><span class="token operator">/</span>frps<span class="token punctuation">.</span>log log_level = info log_max_days = 2
[common]  bind_addr = 0.0.0.0  bind_port = 7000  dashboard_port = 7500 dashboard_user = admin dashboard_pwd = admin  token = 010  log_file = ./frps.log log_level = info log_max_days = 2

创建服务端启动批处理文件

@<span class="token function">echo</span> off title frp-server <span class="token punctuation">.</span>\frps<span class="token punctuation">.</span>exe <span class="token operator">-</span>c frps<span class="token punctuation">.</span>ini pause
@<span class="token function">echo</span> off title frp-server <span class="token punctuation">.</span>\frps<span class="token punctuation">.</span>exe <span class="token operator">-</span>c frps<span class="token punctuation">.</span>ini pause
@echo off title frp-server .\frps.exe -c frps.ini pause

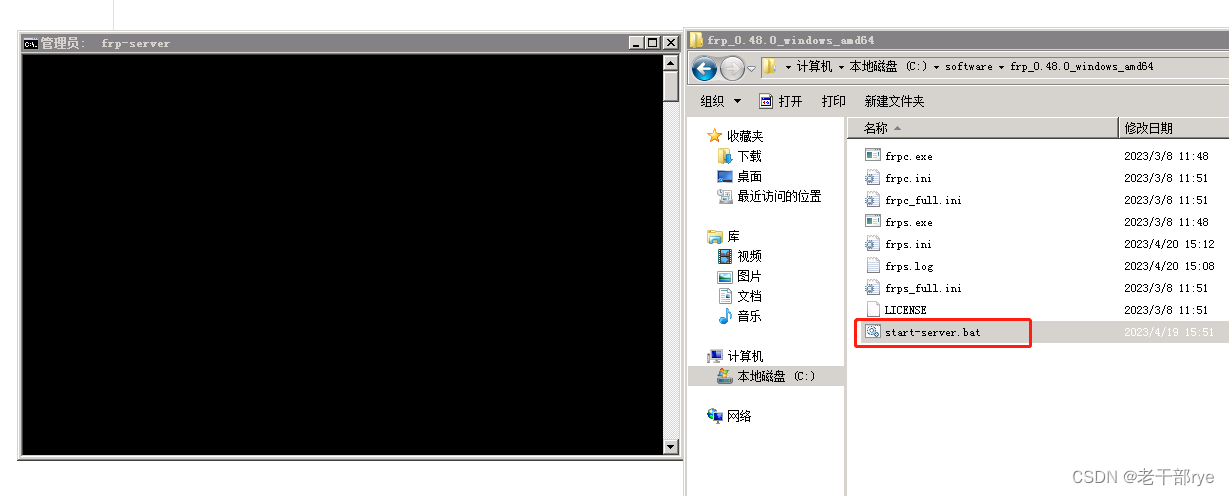

启动服务端

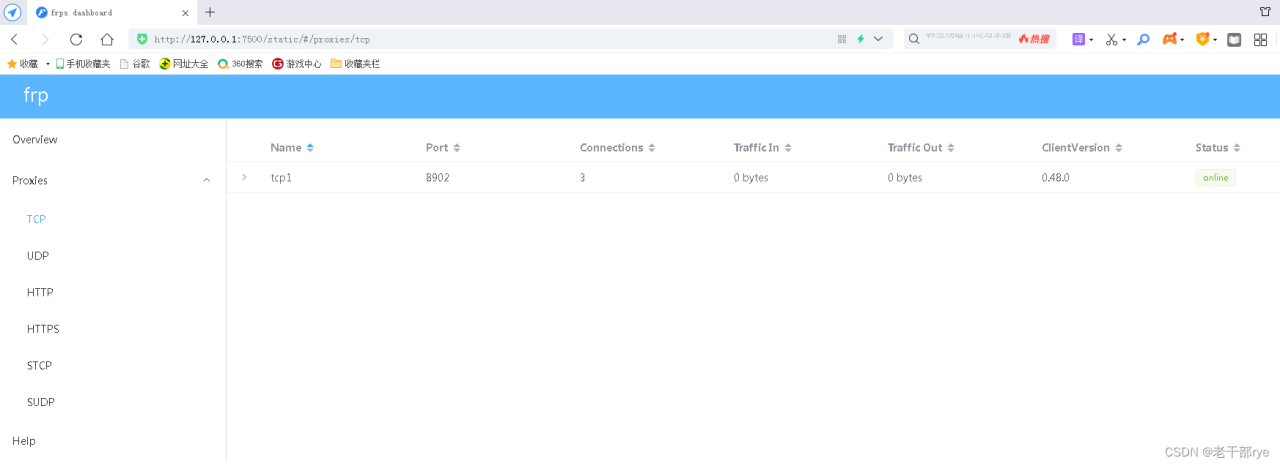

访问7500端口，控制台正常启动

3、客户端配置

修改frpc.ini配置文件

<span class="token namespace">[common]</span>  server_addr = xx<span class="token punctuation">.</span>xx<span class="token punctuation">.</span>xx<span class="token punctuation">.</span>xx  server_port = 7000  token = 010  <span class="token namespace">[tcp1]</span> <span class="token function">type</span> = tcp  local_ip = 127<span class="token punctuation">.</span>0<span class="token punctuation">.</span>0<span class="token punctuation">.</span>1  local_port = 8901  remote_port = 8902
<span class="token namespace">[common]</span>  server_addr = xx<span class="token punctuation">.</span>xx<span class="token punctuation">.</span>xx<span class="token punctuation">.</span>xx  server_port = 7000  token = 010  <span class="token namespace">[tcp1]</span> <span class="token function">type</span> = tcp  local_ip = 127<span class="token punctuation">.</span>0<span class="token punctuation">.</span>0<span class="token punctuation">.</span>1  local_port = 8901  remote_port = 8902
[common]  server_addr = xx.xx.xx.xx  server_port = 7000  token = 010  [tcp1] type = tcp  local_ip = 127.0.0.1  local_port = 8901  remote_port = 8902

创建客户端启动批处理文件

@<span class="token function">echo</span> off title frp-client <span class="token punctuation">.</span>\frpc<span class="token punctuation">.</span>exe <span class="token operator">-</span>c frpc<span class="token punctuation">.</span>ini pause
@<span class="token function">echo</span> off title frp-client <span class="token punctuation">.</span>\frpc<span class="token punctuation">.</span>exe <span class="token operator">-</span>c frpc<span class="token punctuation">.</span>ini pause
@echo off title frp-client .\frpc.exe -c frpc.ini pause

启动服务，连接服务端成功

4、测试

访问外网服务器IP:8902，请求成功转发到了内网127.0.0.1:8901端口
