nginx反向代理docker，并用nfs同步docker-陌上烟雨遥

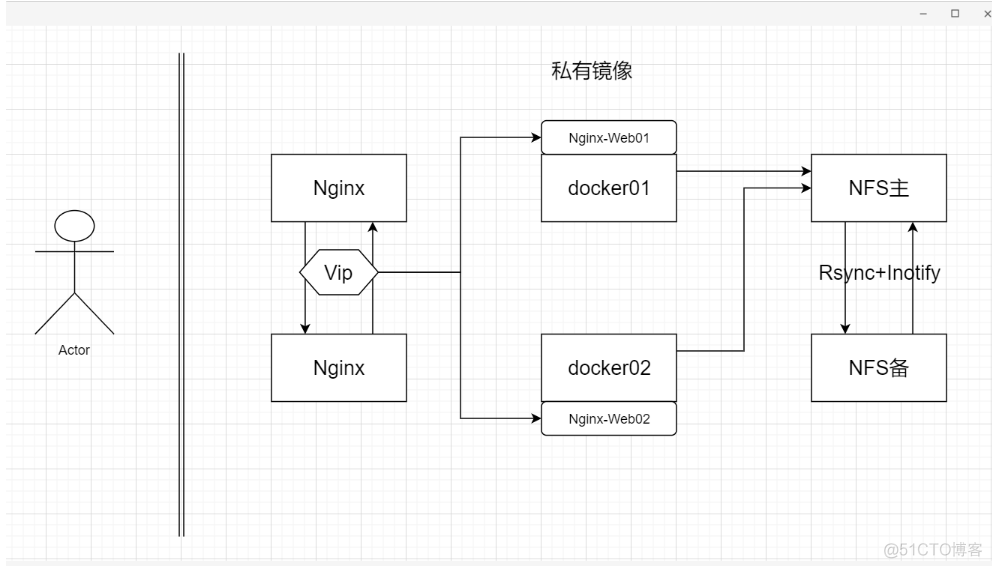

nginx反向代理docker，并用nfs同步docker插图 nginx1 192.168.1.10

nginx2 192.168.1.20

docker01 192.168.1.30

docker02 192.168.1.40

nfs主 192.168.1.50

nfs备 192.168.1.60

nfs1下载安装nfs:

[root@nfs01 ~]# yum -y install nfs-utils [root@nfs01 ~]# cd /datashare/ [root@nfs01 datashare]# vim /etc/exports 添加： /datashare *(rw,sync,no_root_squash)

启动：

[root@nfs01 datashare]# systemctl start rpcbind [root@nfs01 datashare]# systemctl enable rpcbind [root@nfs01 datashare]# systemctl start nfs-server [root@nfs01 datashare]# systemctl enable nfs-server

docker01上操作：

导入镜像： nginx反向代理docker，并用nfs同步docker插图1

[root@docker01 ~]# docker load < nginx.tar [root@docker01 ~]# mkdir /wwwroot [root@docker01 ~]# mkdir /docker [root@docker01 ~]# docker run -itd --name test nginx:latest [root@docker01 ~]# docker cp test:/etc/nginx /docker/ [root@docker01 ~]# docker cp test:/usr/share/nginx/html /wwwroot/

[root@docker01 ~]# showmount -e 192.168.1.50 Export list for 192.168.1.50: /datashare * [root@docker01 ~]# mount 192.168.1.50:/datashare /wwwroot/html/ [root@docker01 ~]# docker run -itd --name nginx-web1 -v /docker/nginx:/etc/nginx -v /wwwroot/html:/usr/share/nginx/html -p 80:80 nginx:latest

docker02上操作：

导入镜像：

nginx反向代理docker，并用nfs同步docker插图2

[root@docker02 ~]# docker load < nginx.tar [root@docker02 ~]# mkdir /wwwroot [root@docker02 ~]# mkdir /docker [root@docker02 ~]# docker run -itd --name test nginx:latest [root@docker02 ~]# docker cp test:/etc/nginx /docker/ [root@docker02 ~]# docker cp test:/usr/share/nginx/html /wwwroot/

[root@docker02 ~]# showmount -e 192.168.1.50 Export list for 192.168.1.50: /datashare * [root@docker02 ~]# mount 192.168.1.50:/datashare /wwwroot/html/ [root@docker02 ~]# docker run -itd --name nginx-web2 -v /docker/nginx:/etc/nginx -v /wwwroot/html:/usr/share/nginx/html -p 80:80 nginx:latest

更改docker01网页界面，docker02上验证同步：

[root@docker01 ~]# cd /wwwroot/html/ [root@docker01 html]# cat index.html skx nginx [root@docker01 html]# curl 127.0.0.1 skx nginx [root@docker02 ~]# curl 127.0.0.1 skx nginx 验证成功

再nginx01和nginx02上做漂移地址：

nginx01:

[root@nginx01 ~]# yum -y install pcre-devel openssl-devel

导入镜像：

nginx反向代理docker，并用nfs同步docker插图3

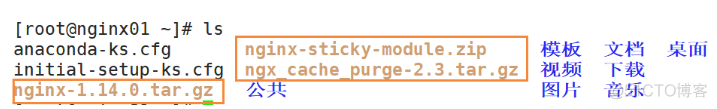

[root@nginx01 ~]# tar zxf ngx_cache_purge-2.3.tar.gz [root@nginx01 ~]# unzip nginx-sticky-module.zip [root@nginx01 ~]# tar zxf nginx-1.14.0.tar.gz [root@nginx01 ~]# cd nginx-1.14.0/ [root@nginx01 nginx-1.14.0]# ./configure --prefix=/usr/local/nginx1.14 --user=www --group=www --with-http_stub_status_module --with-http_realip_module --with-http_ssl_module --with-http_gzip_static_module --http-client-body-temp-path=/var/tmp/nginx/client --http-proxy-temp-path=/var/tmp/nginx/proxy --http-fastcgi-temp-path=/var/tmp/nginx/fcgi --with-pcre --with-http_flv_module --add-module=../nginx-sticky-module --add-module=../ngx_cache_purge-2.3 && make && make install [root@nginx01 nginx-1.14.0]# ln -s /usr/local/nginx1.14/sbin/nginx /usr/local/sbin/ [root@nginx01 nginx-1.14.0]# useradd www -s /sbin/nologin -M [root@nginx01 nginx-1.14.0]# mkdir -p /var/tmp/nginx/client [root@nginx01 nginx-1.14.0]# nginx [root@nginx01 nginx-1.14.0]# netstat -anpt | grep 80 tcp 0 0 0.0.0.0:80 0.0.0.0:* LISTEN 7711/nginx: master

nginx02:

nginx反向代理docker，并用nfs同步docker插图4

[root@nginx02 ~]# tar zxf ngx_cache_purge-2.3.tar.gz [root@nginx02 ~]# unzip nginx-sticky-module.zip [root@nginx02 ~]# tar zxf nginx-1.14.0.tar.gz [root@nginx02 ~]# yum -y install pcre-devel openssl-devel [root@nginx02 ~]# cd nginx-1.14.0/ [root@nginx02 nginx-1.14.0]# ./configure --prefix=/usr/local/nginx1.14 --user=www --group=www --with-http_stub_status_module --with-http_realip_module --with-http_ssl_module --with-http_gzip_static_module --http-client-body-temp-path=/var/tmp/nginx/client --http-proxy-temp-path=/var/tmp/nginx/proxy --http-fastcgi-temp-path=/var/tmp/nginx/fcgi --with-pcre --with-http_flv_module --add-module=../nginx-sticky-module --add-module=../ngx_cache_purge-2.3 && make && make install [root@nginx02 nginx-1.14.0]# ln -s /usr/local/nginx1.14/sbin/nginx /usr/local/sbin/ [root@nginx02 nginx-1.14.0]# useradd www -s /sbin/nologin -M [root@nginx02 nginx-1.14.0]# mkdir -p /var/tmp/nginx/client [root@nginx02 nginx-1.14.0]# nginx [root@nginx02 nginx-1.14.0]# netstat -anpt | grep 80 tcp 0 0 0.0.0.0:80 0.0.0.0:* LISTEN 7355/nginx: master

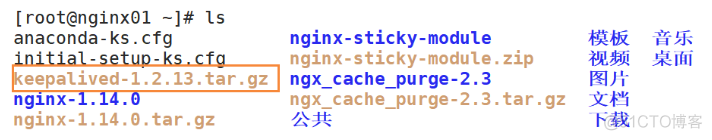

nginx01安装keepalived:

nginx反向代理docker，并用nfs同步docker插图5

[root@nginx01 ~]# tar -zxvf keepalived-1.2.13.tar.gz [root@nginx01 ~]# cd keepalived-1.2.13/ [root@nginx01 keepalived-1.2.13]# ./configure --prefix=/ [root@nginx01 keepalived-1.2.13]# make && make install

[root@nginx01 keepalived-1.2.13]# vim /etc/keepalived/keepalived.conf 3行： global_defs { router_id LVS_DEVEL_1 } 14行： interface ens33 22行： virtual_ipaddress { 192.168.1.254 }

nginx02安装keepalived:

nginx反向代理docker，并用nfs同步docker插图6 [root@nginx01 ~]# tar -zxvf keepalived-1.2.13.tar.gz

[root@nginx01 ~]# cd keepalived-1.2.13/ [root@nginx01 keepalived-1.2.13]# ./configure –prefix=/

[root@nginx01 keepalived-1.2.13]# make && make install

[root@nginx02 keepalived-1.2.13]# vim /etc/keepalived/keepalived.conf

3行：

global_defs { router_id LVS_DEVEL_2 }

14行：

interface ens33

22行：

virtual_ipaddress { 192.168.1.254 }

 docker01和docker02启动服务：

[root@nginx02 keepalived-1.2.13]# /etc/init.d/keepalived start Reloading systemd: [ OK ] Starting keepalived (via systemctl): [ OK ]

 访问： ![](https://s1.51cto.com/images/blog/201912/21/f4595e87674a32c6cb6c25a4f631861a.png?x-oss-process=image/watermark,size_16,text_QDUxQ1RP5Y2a5a6i,color_FFFFFF,t_30,g_se,x_10,y_10,shadow_20,type_ZmFuZ3poZW5naGVpdGk=) #### docker01和docker02做反向代理： #### docker01:

[root@nginx01 ~]# vim /usr/local/nginx1.14/conf/nginx.conf

21行添加：

upstream backend {

ip_hash;

server 192.168.1.30:80 weight=1 max_fails=2 fail_timeout=10s; server 192.168.1.40:80 weight=1 max_fails=2 fail_timeout=10s; }

49行添加：

proxy_pass http://backend;

 重启服务：

[root@nginx01 ~]# nginx -t nginx: the configuration file /usr/local/nginx1.14/conf/nginx.conf syntax is ok nginx: configuration file /usr/local/nginx1.14/conf/nginx.conf test is successful [root@nginx01 ~]# nginx -s reload

 #### docker02:

33行添加：

upstream backend { ip_hash; server 192.168.1.30:80 weight=1 max_fails=2 fail_timeout=10s; server 192.168.1.40:80 weight=1 max_fails=2 fail_timeout=10s; }

50行添加：

proxy_pass http://backend;

 重启服务：

 浏览器用漂流地址访问 #### 做NFS的Rsync+Inotify #### nfs01: ![](https://s1.51cto.com/images/blog/201912/21/853d21d253a7f2ca29e7b1c5bd0a25bc.png?x-oss-process=image/watermark,size_16,text_QDUxQ1RP5Y2a5a6i,color_FFFFFF,t_30,g_se,x_10,y_10,shadow_20,type_ZmFuZ3poZW5naGVpdGk=)

[root@nfs01 ~]# tar zxf inotify-tools-3.14.tar.gz [root@nfs01 ~]# cd inotify-tools-3.14/ [root@nfs01 inotify-tools-3.14]# ./configure && make && make install

[root@nfs01 inotify-tools-3.14]# vim /etc/rsyncd.conf

最后一行添加：

gid = nobody use chroot = yes address = 192.168.1.50 port 873 log file = /var/log/rsyncd.log pid file = /var/run/rsyncd.pid hosts allow = 192.168.1.0/24 [wwwroot] path = /datashare read only = no dont compress = *.gz *.tgz *.zip *.z *.Z *.rpm *.deb *.bz2

 #### 编写脚本来实现实时同步：

[root@nfs01 ~]# vim /inotify_sync.sh

#!/bin/bash

inotify_cmd="inotifywait -mrq -e modify,create,attrib,move,delete /datashare"

rsync_cmd="rsync -azH /datashare/* 192.168.2.40::wwwroot"

$inotify_cmd | while read DIRECTORY EVENT FILE

$rsync_cmd

done

[root@nfs01 ~]# chmod +x /inotify_sync.sh

启动服务：

[root@nfs01 ~]# rsync –daemon

 #### nfs02：

[root@nfs02 ~]# yum -y install rsync

[root@nfs02 ~]# vim /etc/rsyncd.conf

uid = nobody gid = nobody use chroot = yes address = 192.168.1.60 port 873 log file = /var/log/rsyncd.log pid file = /var/run/rsyncd.pid hosts allow = 192.168.1.0/24 [wwwroot] path = /datashare read only = no dont compress = *.gz *.tgz *.zip *.z *.Z *.rpm *.deb *.bz2

[root@nfs02 ~]# mkdir /datashare
